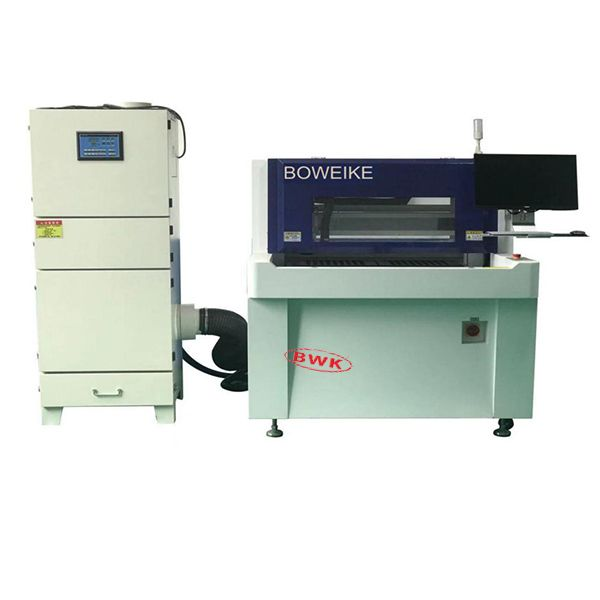

功能項Function item

硬件要求hardware requirements

X、Y軸切割速度?Shear Speed of X,Y axis?

0-100mm/s(必須項)?0-100mm/s

X、Y、Z軸驅動速度Drive speed of X,Y,Z axis

X、Y軸至少700mm/s，Z軸至少300mm/s，伺服馬達方式驅動(必須項)X、Y axis at least 700mm/s，Z ? axis at least 300mm/s, by motor drive servo

機臺重復精度Accuracy of Repeat

±0.01mm ?±0.01mm

工作區域（可加工行程）Work Area

X:350mm，Y1：330mm，Y2：330mmZ：0-50mm（必須項）??

切割PCB厚度范圍PCB Thickness

0.5-2mm，或范圍更大0.5-2mm，or wider

切割精度?Shear Accuracy

±0.02mm(必須項)±0.02mm

切割能力Shear Ability

具有切割直線、圓弧、圓、L型和U型的能力（必須項）capable of shear of straight line, arc, circle, L and U shape

刀具更換系統Blade Replacement

可手動換刀系統，需工具）Manual, tool is requested

刀具磨損系統Blade wear

可智能設定銑刀下刀段數set milling tool by intelligence

Table數量Table Number

2個（必須項）2 pieces

Table功能Table Fuction

單Table，左右Table交替及并行Table運行方式，設備能實現兩個Table同動功能SingleTable，left and ? right Table works alternantly, two Tables can work simultaneously

主軸轉速M(fèi)ain axis speed

60000rpm（必須項）60000rpm

主軸冷卻系統Main axis cool down

風冷方式By cold wind

集塵方式Dust collection

外置式上/下集塵（必須項）Built-in dust collector

工作電源Power Supply

380V ??，50HZ380V?，50HZ

空壓供給Pressure Supply

0.45Mpa以上0.45Mpa

治具Jig

萬用治具可供選擇Jigs for option or custom

CCD

IMAGING

絲桿Ball Screw

Hiwin進口精密研磨滾珠絲杠Hiwin ? precise grinding ball screw imported

導軌Lead Rail

Hiwin進口直線加寬導軌Hiwin ? straight widened lead rail imported

伺服電機Servo Motor

松下A6 400W Panasonic

顯示器Monitor

Lenovo

控制系統Control System

Windows7

操作界面Operation Inteface

Windows7

編程Program

在線方式Online

視覺系統Visual System

RMS視覺分板機系統像素計算型高精度CCD視覺定位校正系統CCD Visual alignment system

設備尺寸Machine size

?L1400mm*W1200mm*H1600mm

重量Weight

約780kgApprox 780kg

底腳可調高度Foot Height adjustable

50~70mm

板最大厚度Max.PCB Thickness

4mm

整機功率（含集塵器）Power (included dust collector)

5000w

最大轉速M(fèi)ax Rotation Speed

60000rpm/min

冷卻方式Cool Down

氣冷+夾具散熱cold air and clamp radiating

更換工具方式Tool replacement

專用扳手更換by specialized tool

最大切割精度Shear speed

0~100mm/s

最大移動速度Max Moving Speed

1000mm/s

切割重復精度Shear Repeat Accuracy

±0.02mm

集塵器功率Dust Collector Power

3.7kw 380v三相電機3.7kw 380v three phase motor

氣壓Pressure

0.6Mpa以上0.6Mpa above

編輯功能Edit

直線、孔狀、圓弧、圓Straight line, hole, arc, circuit

配置編程Camera

高像素彩色CCD ?Toshiba ? High Resolution Color CCCD

軸位置精度Axis Position Accuracy

0.001mm

分板精度Accuracy of Shear

±0.02mm
